Model Whirlpool 1176^0A GAS COOKTOP – Common Parts & Diagrams

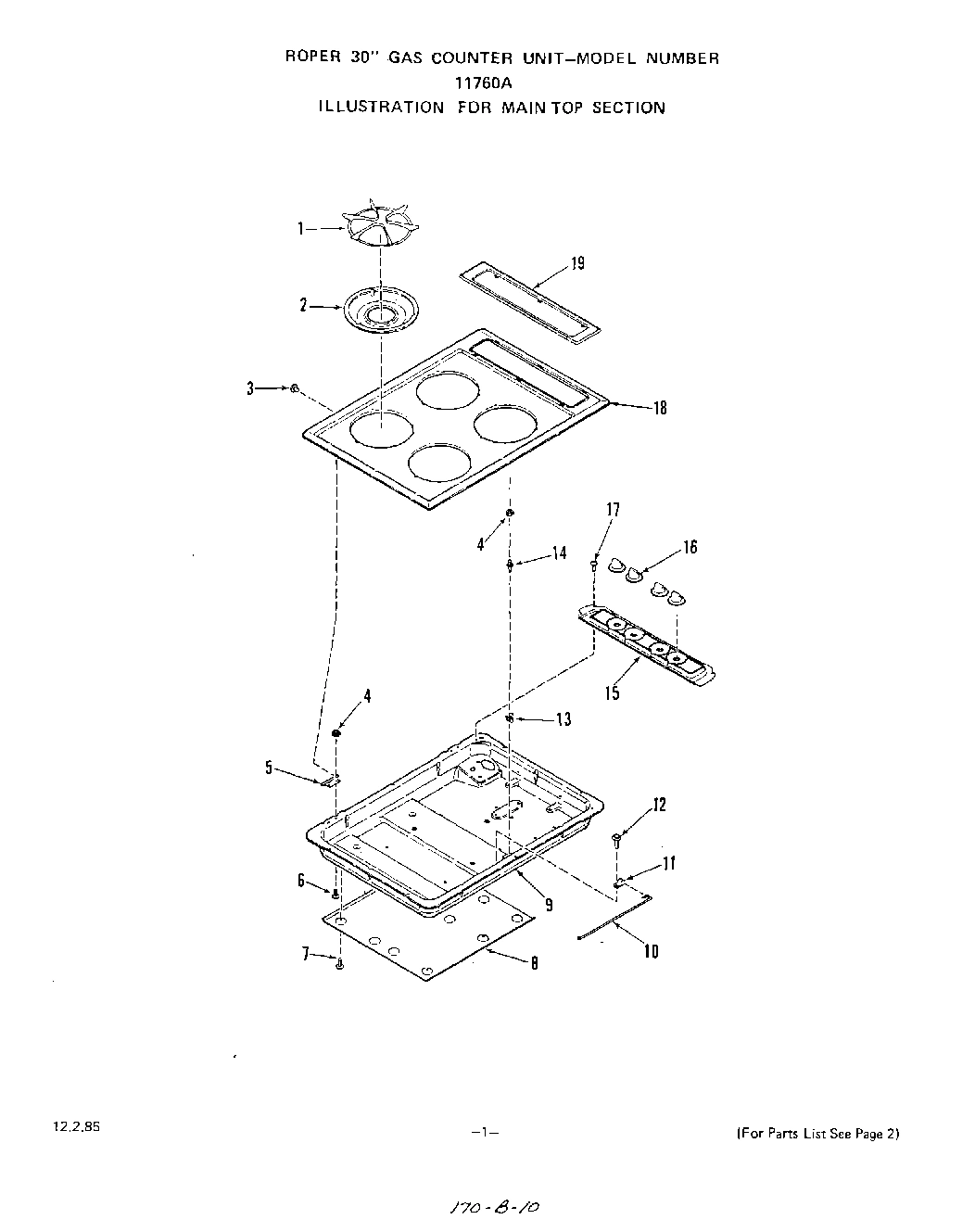

02 - SECTION

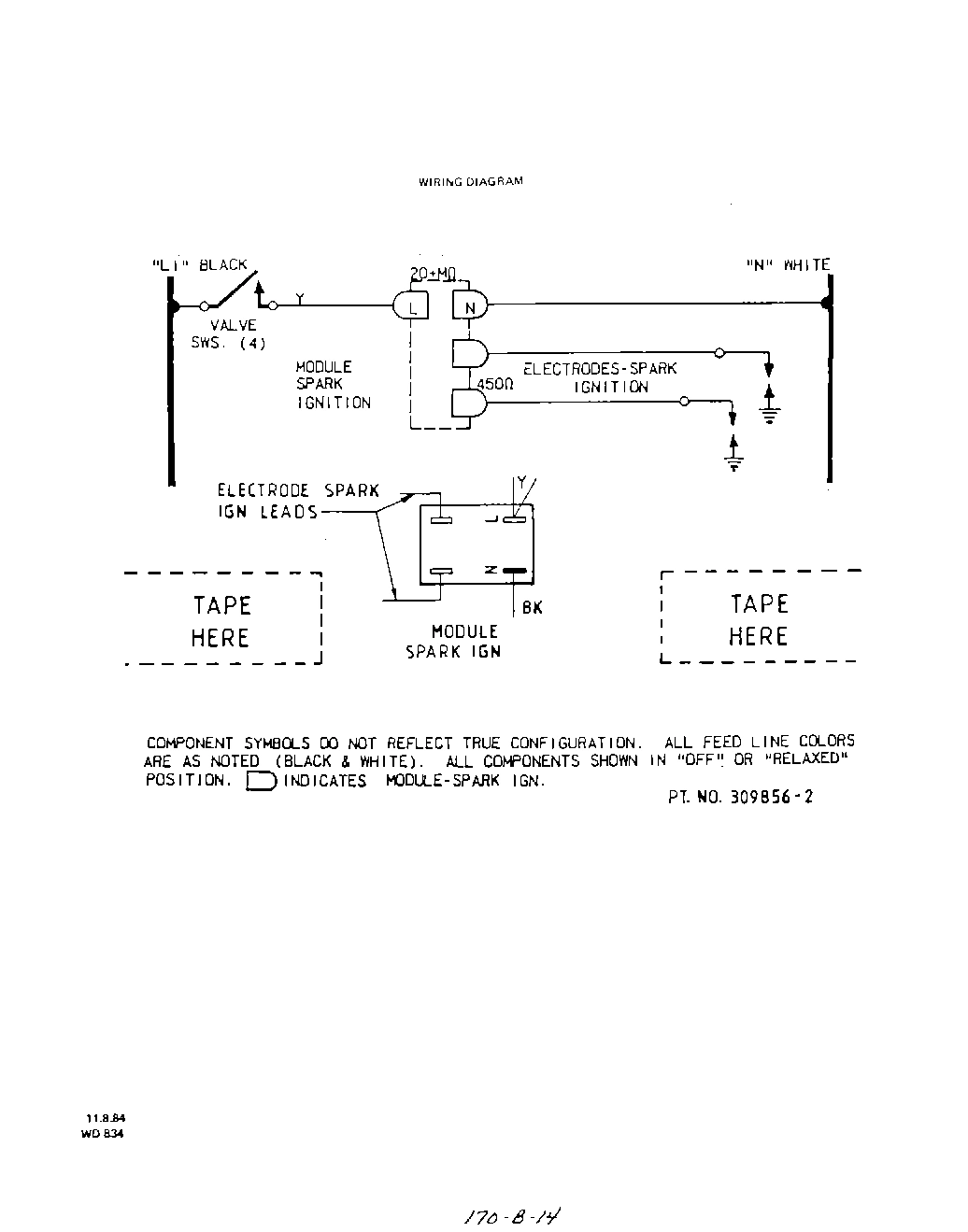

04 - SECTION

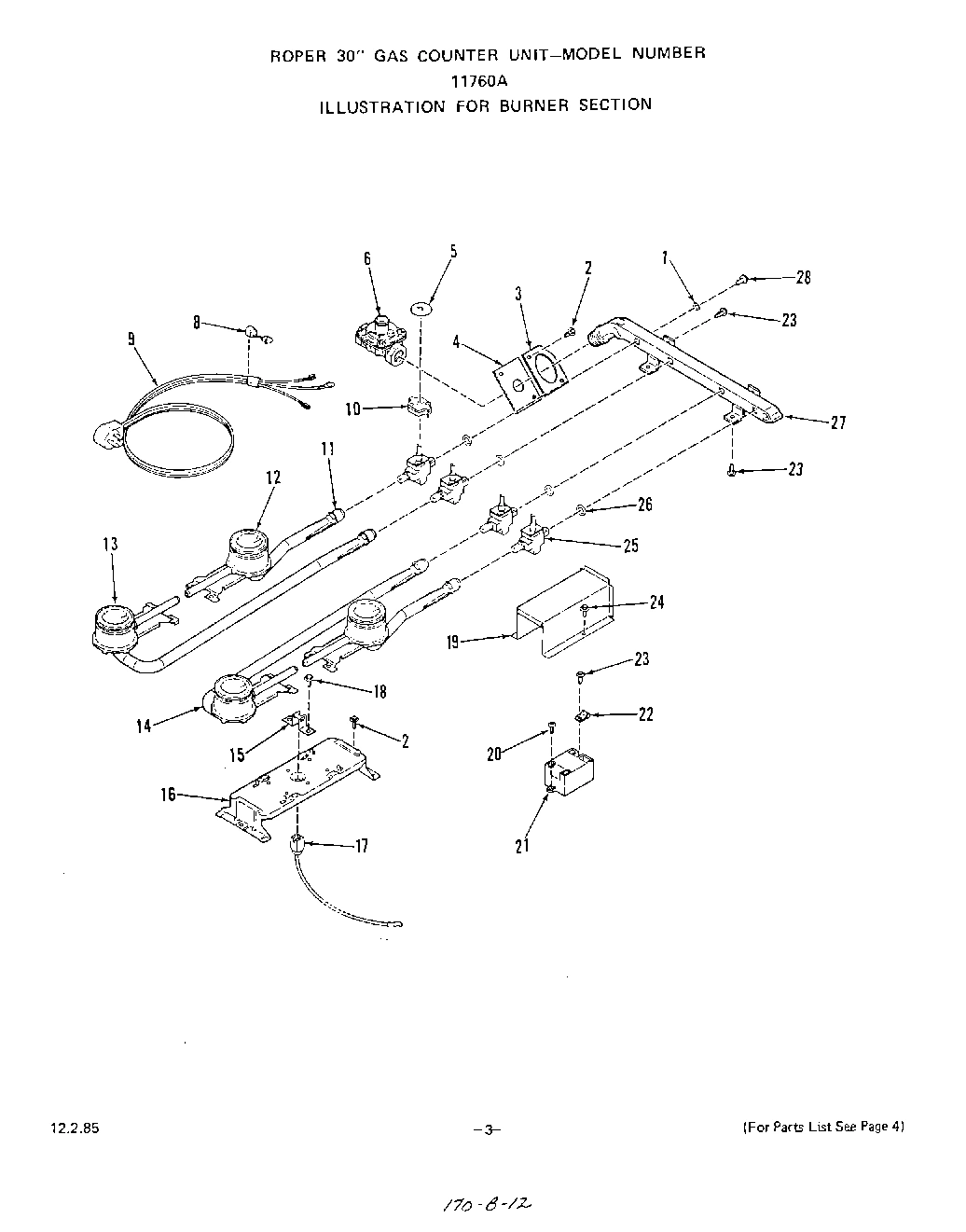

03 - SECTION

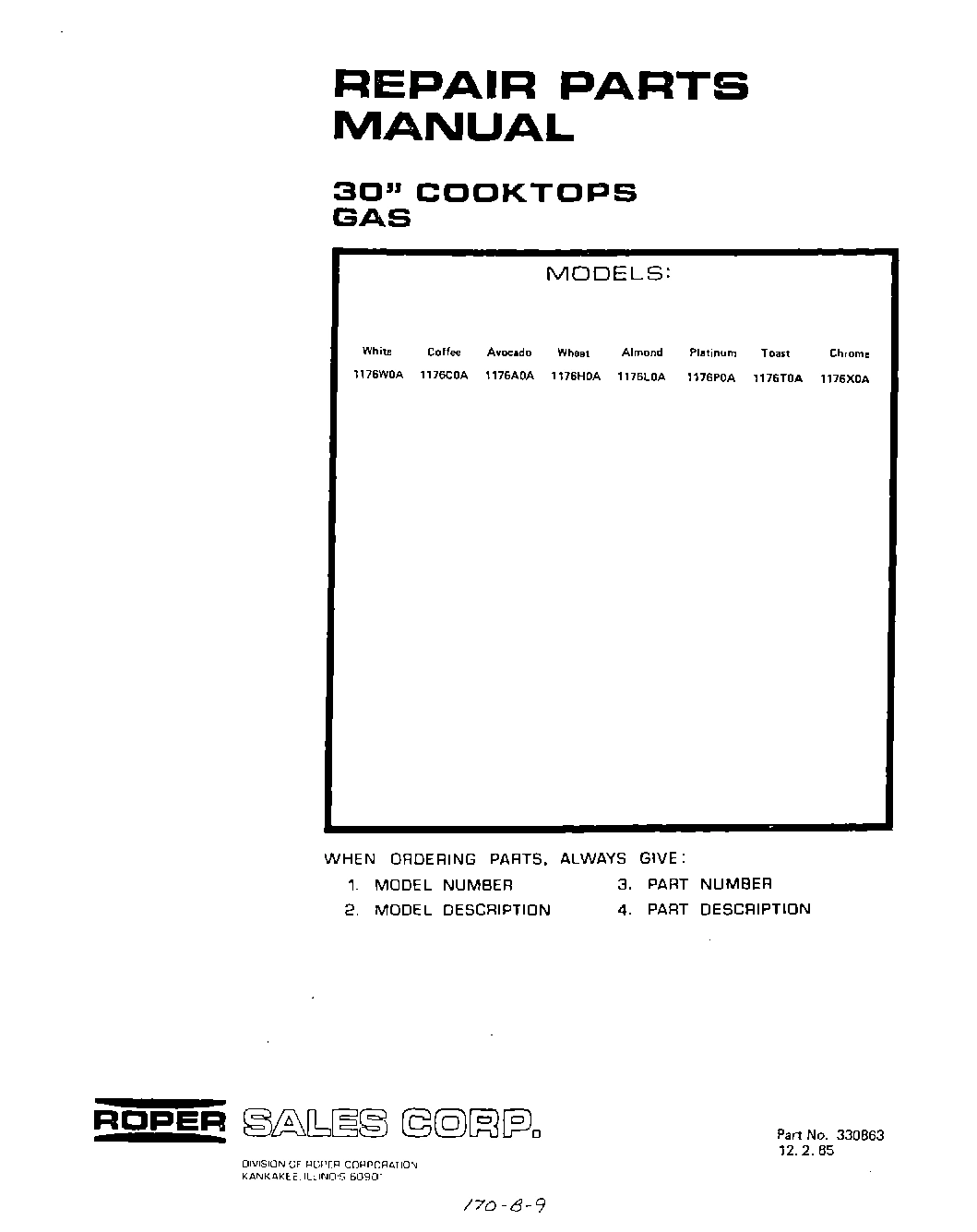

01 - SECTION
Common parts from model Whirlpool 1176^0A GAS COOKTOP
1
Grate-Top (4 Req) WPL 316786 Contact Us For Availability
1
Gasket WPL 311692 Contact Us For Availability
2
Pan-Aeration (4 Req) WPL 330427 Contact Us For Availability
2
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
3
Screw 6-32x1/4`` WPL 072055 Contact Us For Availability
3
Manifold Seal WPL 330408 Contact Us For Availability
4
Nut-Hex 8-32 WPL 239764 Contact Us For Availability
4
Manifold Seal Retainer WPL 330409 Contact Us For Availability
5
Hinge-Main Top WPL 330421 Contact Us For Availability
5
Shield-Gas Valve (4 Req) WPL 306589 Contact Us For Availability
6
Screw 8-32x1/4`` WPL 322183 Contact Us For Availability
6
Regulator-Pressure WPL 324529 Contact Us For Availability
8
Burner Box Shield WPL 323348 Contact Us For Availability
9
Box-Burner WPL 331922 Contact Us For Availability
9
Cord WPL 309854 Contact Us For Availability
10
Support-Main Top WPL 330422 Contact Us For Availability
10
Switch-Valve (4 Req) WPL 311389 Contact Us For Availability
11
Clamp WPL 285945 Contact Us For Availability
11
Shutter-Air WPL 327198 Contact Us For Availability
12
Burner-Top Asm (Right Front & Rear) WPL 330410 Contact Us For Availability
13
Catch-Main Top WPL 71003 Contact Us For Availability
13
Burner-Top Asm (Left Rear) WPL 330412 Contact Us For Availability
14
Strike-Main Top WPL 24668 Contact Us For Availability
14
Burner-Top Asm (Left Front) WPL 330411 Contact Us For Availability
15
Control Panel WPL 330809 Contact Us For Availability
15
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
16
Knob-Gas Valve (4 Req) WPL 329297 Contact Us For Availability
16
Support-Top Burner WPL 330405 Contact Us For Availability
17
Electrode-Spark Igniter WPL 312598 Contact Us For Availability
18
Top-Main (White) WPL 330426 Contact Us For Availability
18
Top-Main (Coffee) WPL 330442 Contact Us For Availability
18
Top-Main (Platinum) WPL 330443 Contact Us For Availability
18
Top-Main (Wheat) WPL 330444 Contact Us For Availability
18
Top-Main (Toast) WPL 330445 Contact Us For Availability
18
Top-Main (Almond) WPL 330446 Contact Us For Availability
18
Top-Main (Chrome) WPL 330456 Contact Us For Availability
18
Top-Main (Avocado) WPL 330813 Contact Us For Availability
18
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
19
Bezel-Control WPL 330419 Contact Us For Availability
19
Cover-Module Wire WPL 323351 Contact Us For Availability
20
Screw 6-32x3/8`` WPL 105667 Contact Us For Availability
21
Module-Spark Igniter WPL 320990 Contact Us For Availability
22
Clamp-Nylon WPL 109266 Contact Us For Availability
23
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
24
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
25
Valve-Gas (4 Req) WPL 330407 Contact Us For Availability
26
Gasket WPL 313563 Contact Us For Availability
27
Pipe-Manifold WPL 330406 Contact Us For Availability
28
Screw 1/4``-20 WPL 311455 Contact Us For Availability
× ![]()
